6065VEC TILLER CRT REAR TINE 196CC VIPER ELEC (SERIES # 013340, MODEL YEAR 2012)

Parts Catalog

Search for your model number or series number:


What is my series number or model year?

Where do I find my serial and/or model number?

or, select a brand:

View Documents

6065VEC CRT Rear Tine Tiller; Series # 013340, Model Year 2012

6065VEC CRT Rear Tine Tiller; Series # 013340, Model Year 2012

Click on Titles Below to View Assembly & Parts List

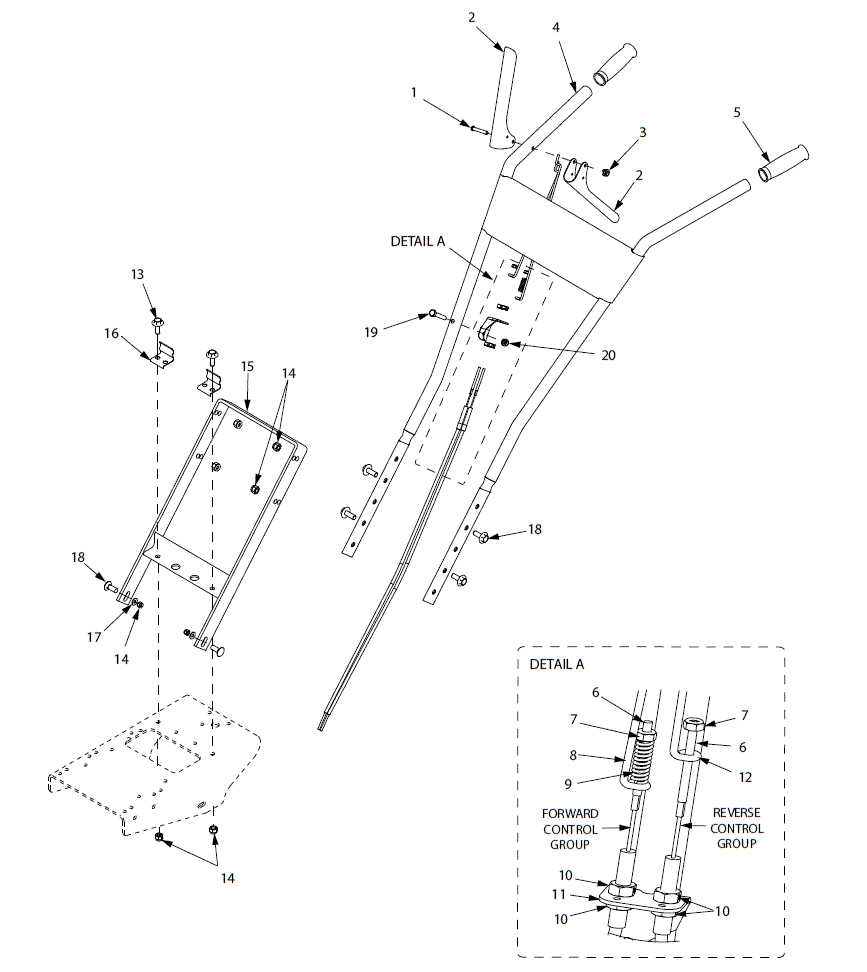

  • Handlebar Assembly

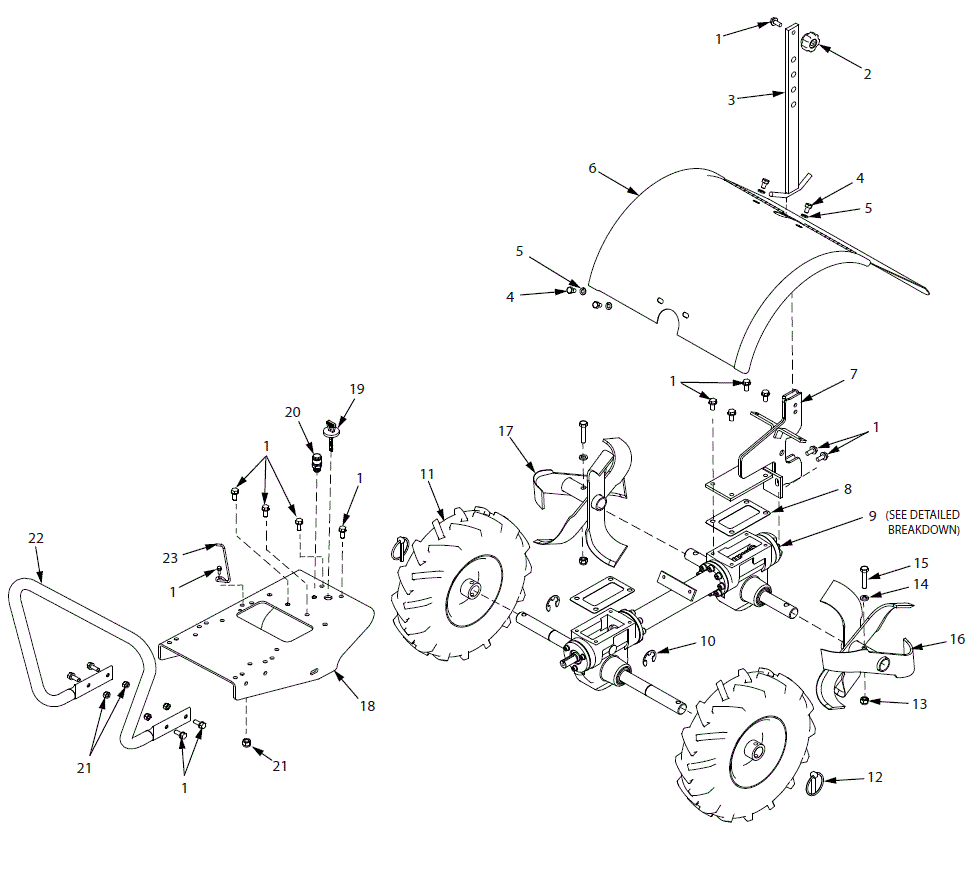

  • Tines & Hood Assembly

  • Transmission Detailed Breakdown #1

  • Transmission Detailed Breakdown #2

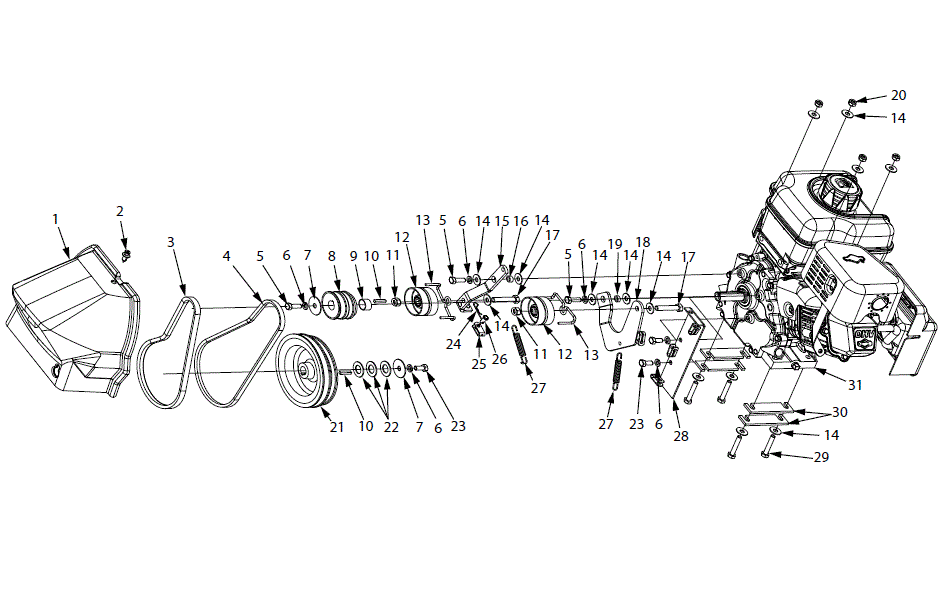

  • Engine Belts and Pulleys Assembly

  • Enter the quantity for each part you wish to purchase and press the "ADD TO CART" button.

    Key No.Part No.ImageDescriptionCostAvailabilityOrder Qty.
