RC4432 MOWER ROUGH CUT 44 INCH BRIGGS (SERIES # 040854, MODEL YEAR 2021)

Parts Catalog

Search for your model number or series number:


What is my series number or model year?

Where do I find my serial and/or model number?

or, select a brand:

View Documents

10/29/2019
RC4432 ROUGH CUT MOWER; SERIES # 040854, MODEL YEAR 2021
9/12/2020
RC4432 ROUGH CUT MOWER; SERIES # 040854, MODEL YEAR 2021

Click on Titles Below to View Assembly & Parts List

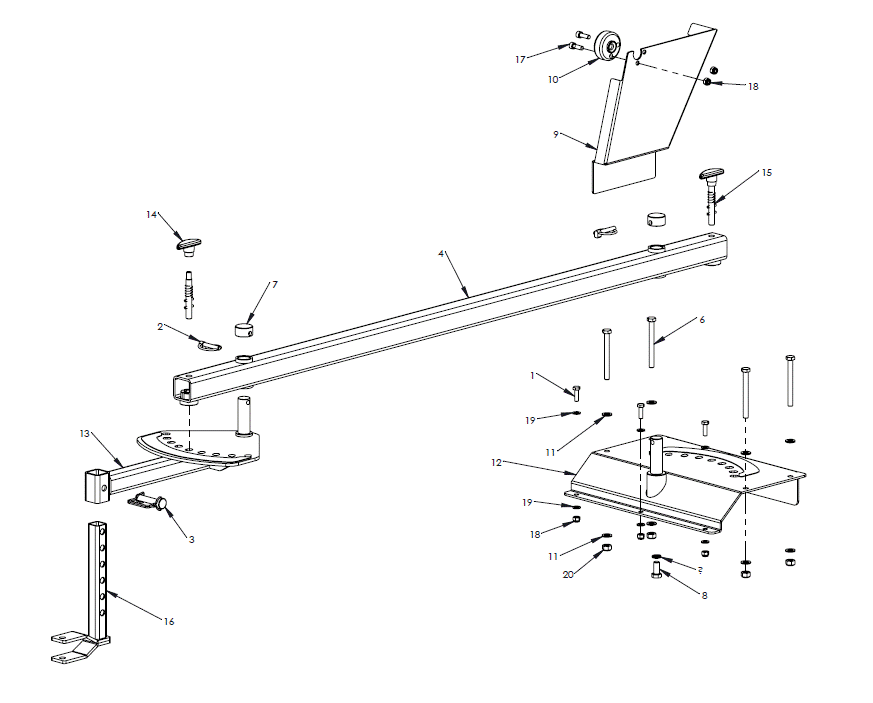

  • TONGUE & HITCH ASSEMBLY

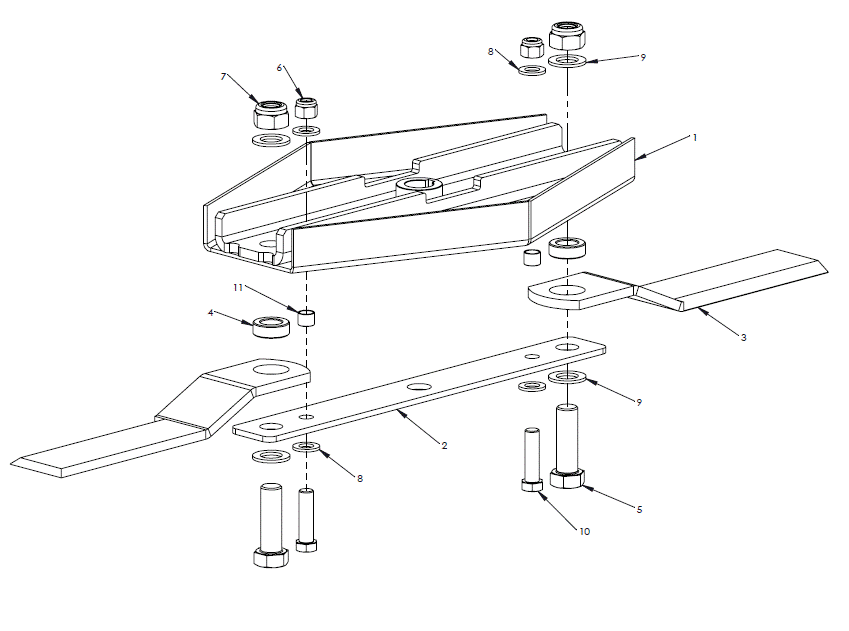

  • BLADE ASSEMBLY

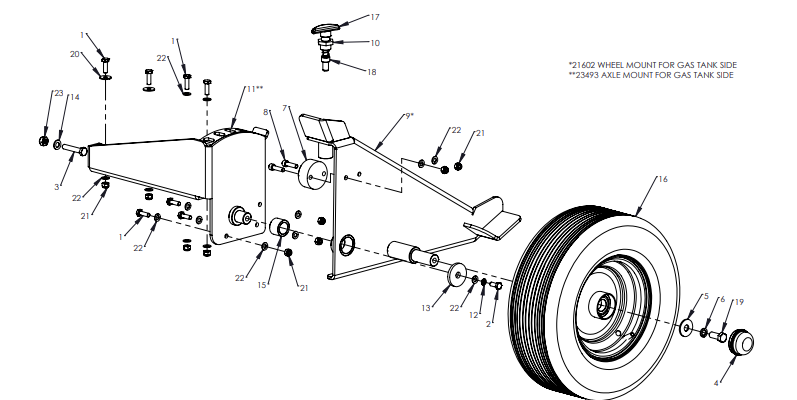

  • WHEEL ASSEMBLY

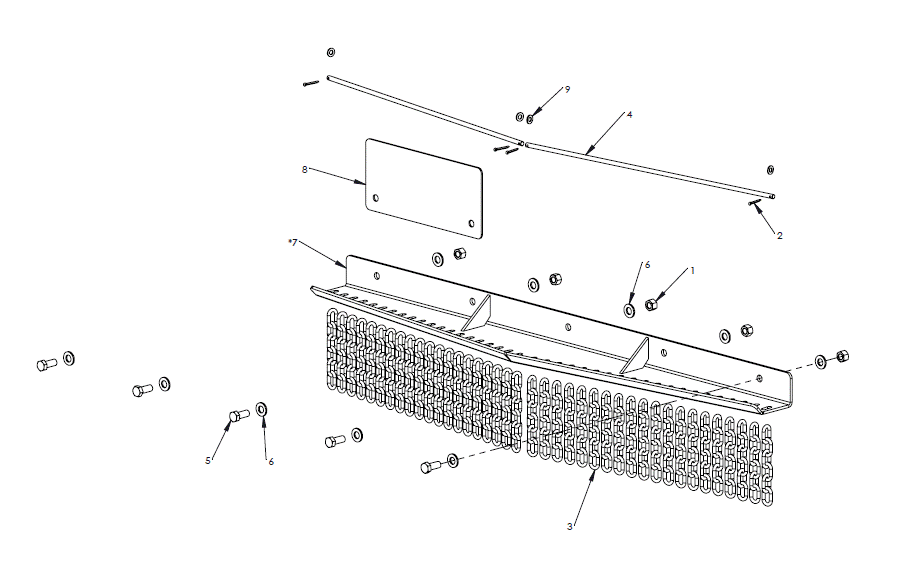

  • BRUSH GUARD ASSEMBLY

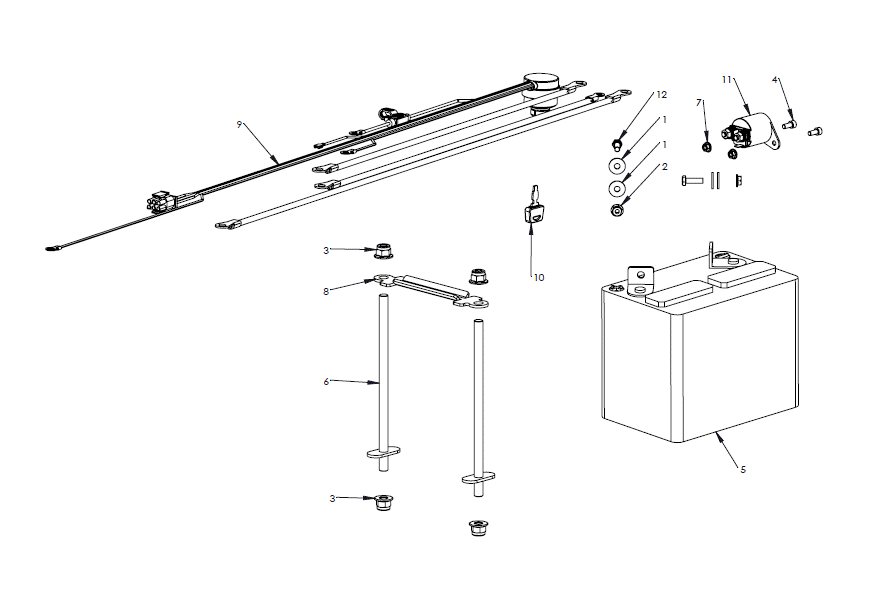

  • WIRING HARNESS ASSEMBLY

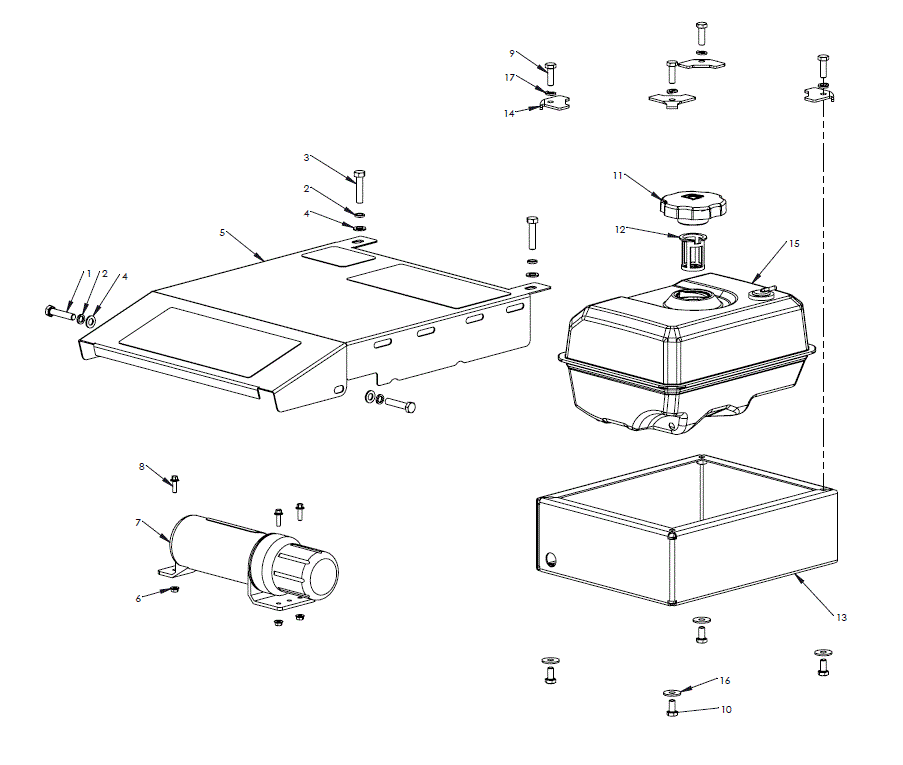

  • PULLEY COVER, GAS TANK & MANUAL ASSEMBLY

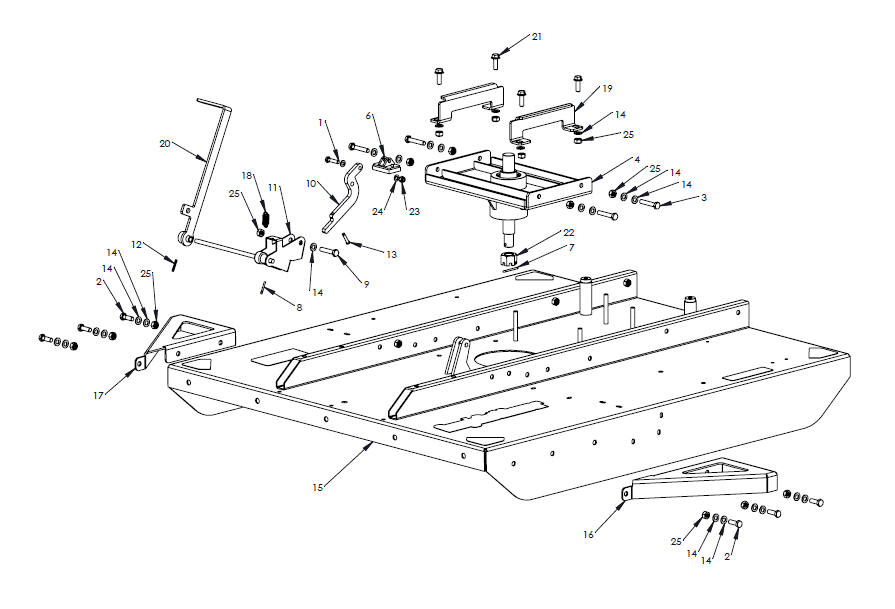

  • MOWER DECK ASSEMBLY

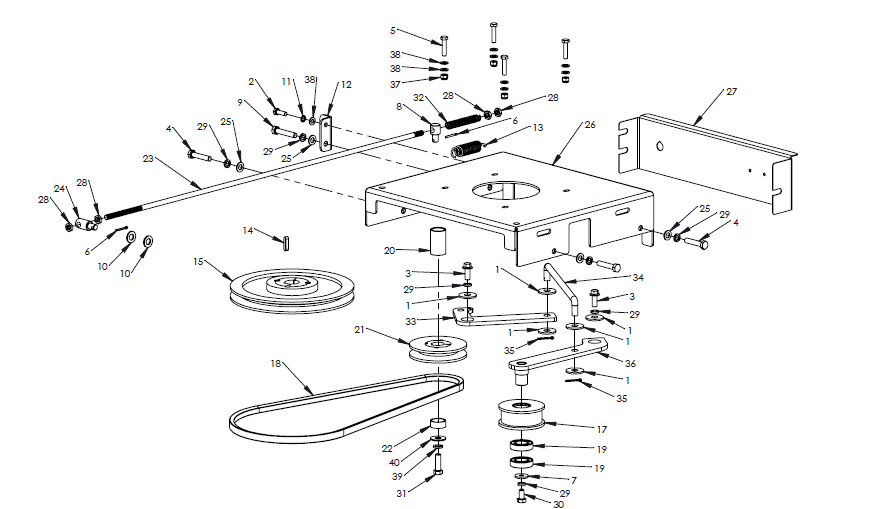

  • ENGINE MOUNT ASSEMBLY

  • Enter the quantity for each part you wish to purchase and press the "ADD TO CART" button.

    Key No.Part No.ImageDescriptionCostAvailabilityOrder Qty.
